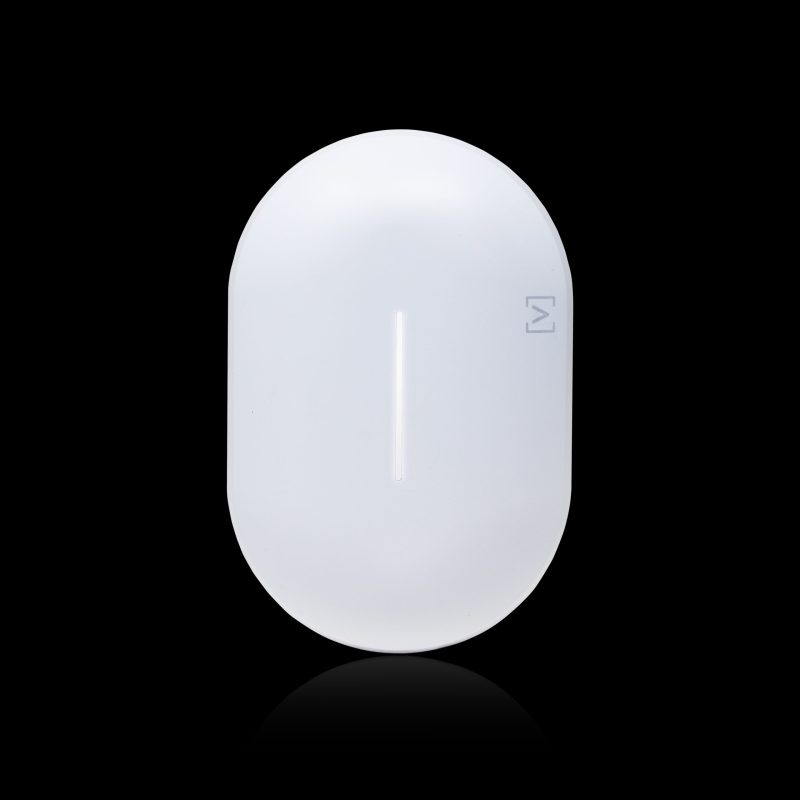

The AP6 Pro is a high-performance 4×4 WiFi 6 (802.11ax) access point with IP54 rating. Ideal for demanding professional environments, it delivers extended coverage and a combined throughput of 6.3 Gbps thanks to 4096 QAM technology.
Features Overview
IP54 Rated
Mesh Connectivity
WiFi 6 with WiFi 7 Benefits
Superior Range and Performance
Scalable Cloud-Based Management
AltaPass™ Multi-Password
Mobile App
Hotspot Functionality
DPI Engine
On-The-Fly Changes
Wireless Network Color Coding
PoE+
WiFi 6 with WiFi 7 Benefits
Built on an innovative dual-band, 6-stream WiFi 6 platform from Qualcomm®, the AP6 Pro incorporates 4096 QAM, one of the primary features of WiFi 7, providing a combined 6.3 Gbps of WiFi capacity.
Mesh Connectivity
The AP6 Pro features Mesh technology to extend your WiFi network to areas that may be difficult or unreachable with wired Ethernet.
Superior Range and Performance
Our proprietary antenna design provides superior range and performance. The AP6 Pro features four 5 GHz antennas, outperforming 2×2 APs by over 30% throughput increase in many cases.
Seamless roaming with 802.11 k, v, and r support. Intelligent mesh formation for maximum throughput.
Scalable Cloud-Based Management
Intuitive and easy-to-use cloud-based management interface with high-availability architecture for worldwide accessibility.
- Deploy and manage multiple sites quickly
- Worldwide CDN-optimized connectivity
- Redundant cloud infrastructure
IP54 Rated
The AP6 Pro is IP54 rated, offering strong protection against dust and limited water resistance. Can be installed outdoors under eaves or overhangs.
Advanced Filtering — DPI Engine
Powerful built-in Deep Packet Inspection engine. No additional hardware needed.
- Restrict access to websites, applications, or application types
- Device-specific exceptions to bypass filters, schedules, or hotspots
Mobile App
Monitor and manage your networks from your mobile device. Sign up via Google, Apple, or email.
AltaPass™ Multi-Password Technology
Connect clients to the same SSID with different passwords, each providing customized access levels. Associate passwords with specific rates, VLANs, or filter exceptions.
Specifications
| WiFi Standards | 802.11a/b/g/n/ac/ax (WiFi 4/5/6) |
| MIMO | 2.4 GHz: 2×2, 5 GHz: 4×4 |
| Max Throughput | 2.4 GHz: Up to 574 Mbps, 5 GHz: Up to 5.8 Gbps |
| QAM | 4096 QAM |
| Concurrent Clients | 350+ |
| Rating | IP54 |
| Power | PoE+ (802.3at) |
| Dimensions | 190 × 125 × 32 mm |
| Mounting | Ceiling, wall, drop-ceiling, table top |
| Roaming | 802.11r/k/v |
| Security | WPA2/WPA3, WPA-Enterprise |
| Certifications | CE, FCC, IC |
