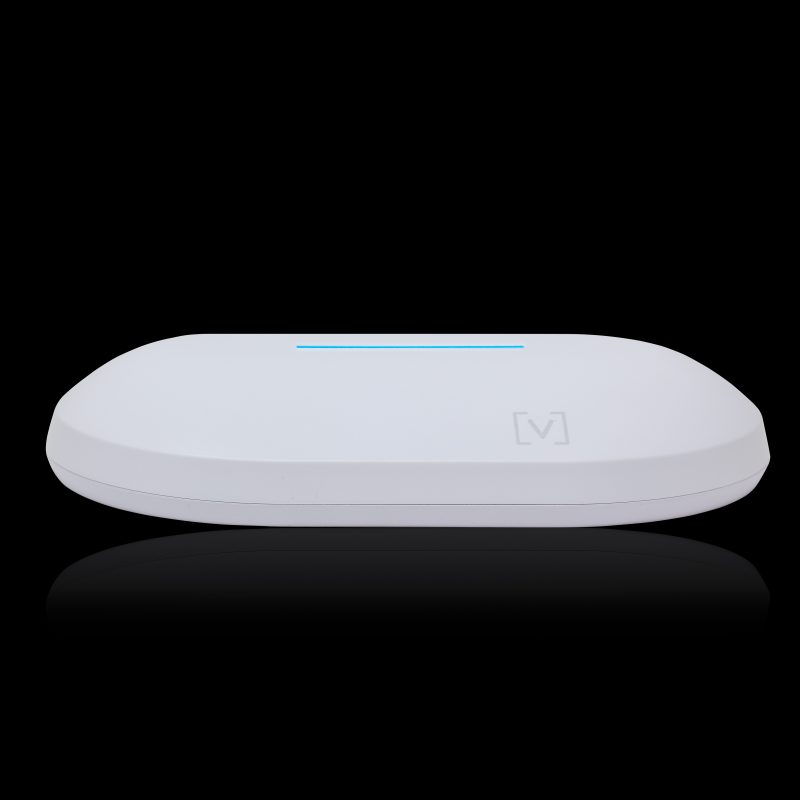

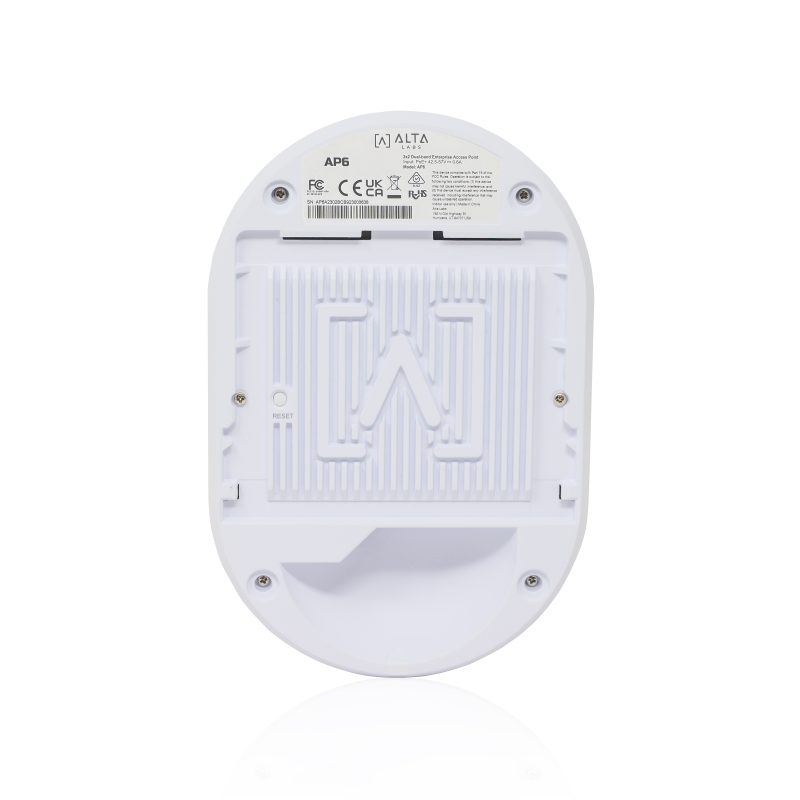

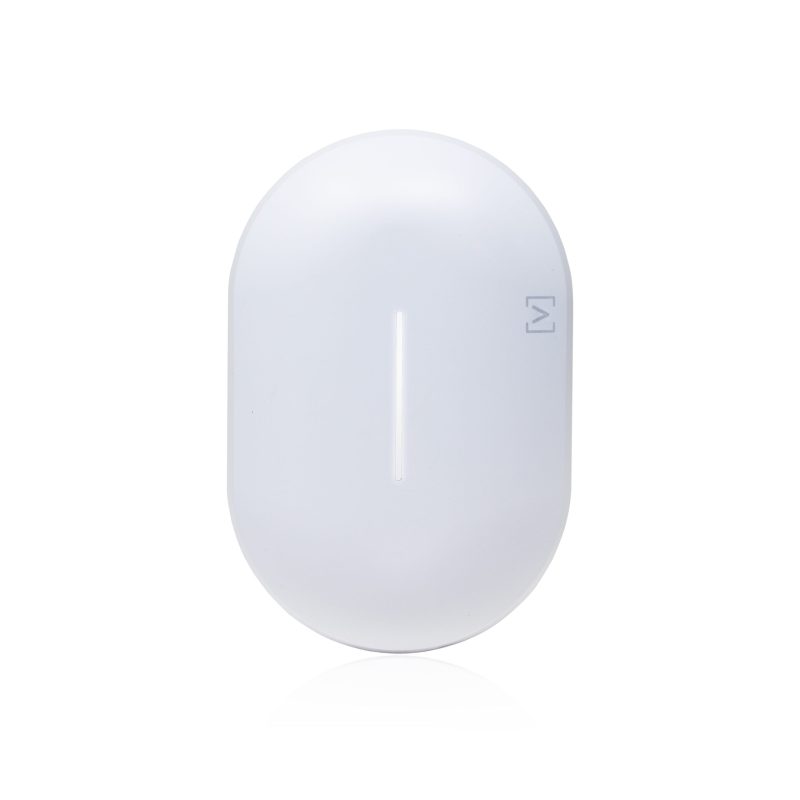

The AP6 is a dual-band 2×2 WiFi 6 (802.11ax) access point for professional networks. With its sleek, compact design, it integrates seamlessly into ceilings or walls while delivering reliable WiFi 6 performance for small to medium spaces.
Features Overview
High Performance WiFi 6
Mesh Connectivity
Superior Range and Performance
Scalable Cloud-Based Management
Advanced DPI Engine
Mobile App
AltaPass™ Multi-Password
Hotspot Functionality
On-The-Fly Changes
Wireless Network Color Coding
Bluetooth Setup
PoE+
Mesh Connectivity
The AP6 features Mesh technology, which can extend your WiFi network to areas that may be difficult or unreachable with wired Ethernet. Create a unified, seamless WiFi network.
Superior Range and Performance
Our proprietary antenna design provides superior range and performance. The AP6 delivers seamless roaming and advanced traffic management for an optimal WiFi experience.
Seamless roaming with support for 802.11 k, v, and r standards for transparent transitions between access points.
Scalable Cloud-Based Management
Alta Labs provides an intuitive cloud-based management interface for access points and switches. Designed for optimum scalability with high-availability architecture.
- Deploy and manage multiple sites quickly and easily
- Worldwide content delivery network (CDN)
- Redundant global cloud infrastructure
Advanced Filtering — DPI Engine
Alta Labs access points have a powerful built-in Deep Packet Inspection (DPI) engine. No additional hardware needed.
- Restrict access to websites, applications, or application types
- Block specific domains
- Device-specific exceptions to bypass filters
Mobile App
Monitor and manage your networks from your mobile device using the Alta Networks app. Sign up with your name, email, and password or via Google/Apple.
AltaPass™ Multi-Password Technology
AltaPass allows clients to connect to the same SSID using different passwords, each providing customized network and internet access levels.
- Standard/Small — Typical network with less than 100 clients
- Large — Optimized for hundreds to thousands of clients
- IoT — Internet and local incoming connections only
- Internet only — Restricted Internet access
- Guest — Internet and IoT devices
Hotspot Functionality
Built-in functionality to create your own local hotspot with a logo, title page, terms of service, and a final landing page. You can also redirect to an external captive portal.
On-The-Fly Changes and Scanning
- Configuration changes do not require a network reboot
- Scan your AP environment without disrupting your WiFi network
Specifications
| WiFi Standards | 802.11a/b/g/n/ac/ax (WiFi 4/5/6) |
| MIMO | 2.4 GHz: 2×2, 5 GHz: 2×2 |
| Max Throughput | 2.4 GHz: Up to 573 Mbps, 5 GHz: Up to 2.4 Gbps |
| Antenna Gain | 2.4 GHz: Up to 4.0 dBi, 5 GHz: Up to 4.1 dBi |
| Concurrent Clients | 300+ |
| Power | PoE+ (802.3at) |
| Management Port | 1× GbE RJ45 |
| Dimensions | 190 × 125 × 32 mm |
| Mounting | Ceiling, wall, drop-ceiling, table top |
| Roaming | 802.11r/k/v |
| Security | WPA2-PSK, WPA2-SAE, WPA-Enterprise (WPA2/WPA3) |
| Certifications | CE, FCC, IC |
