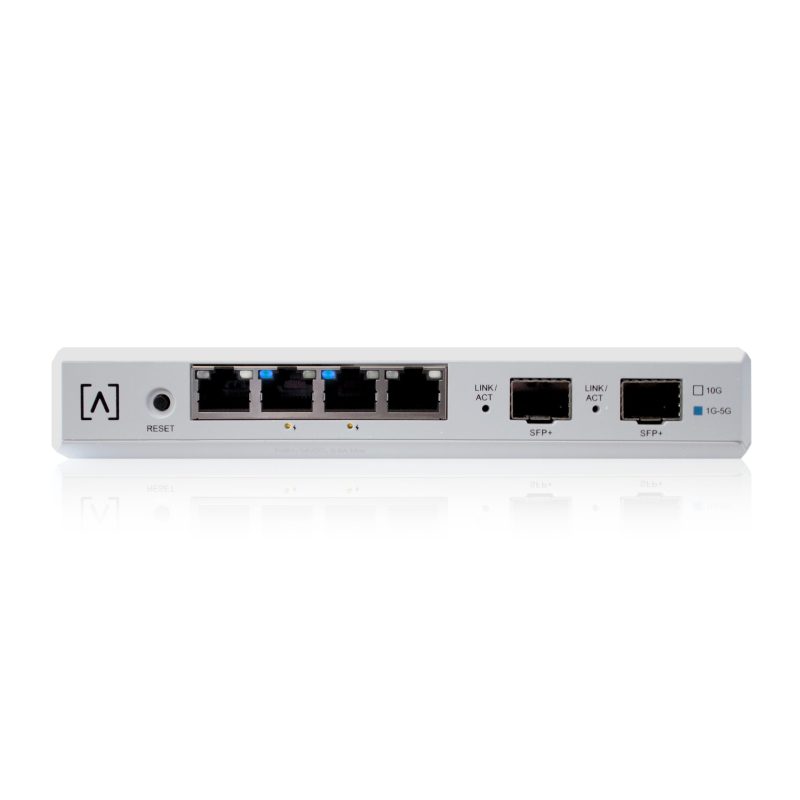

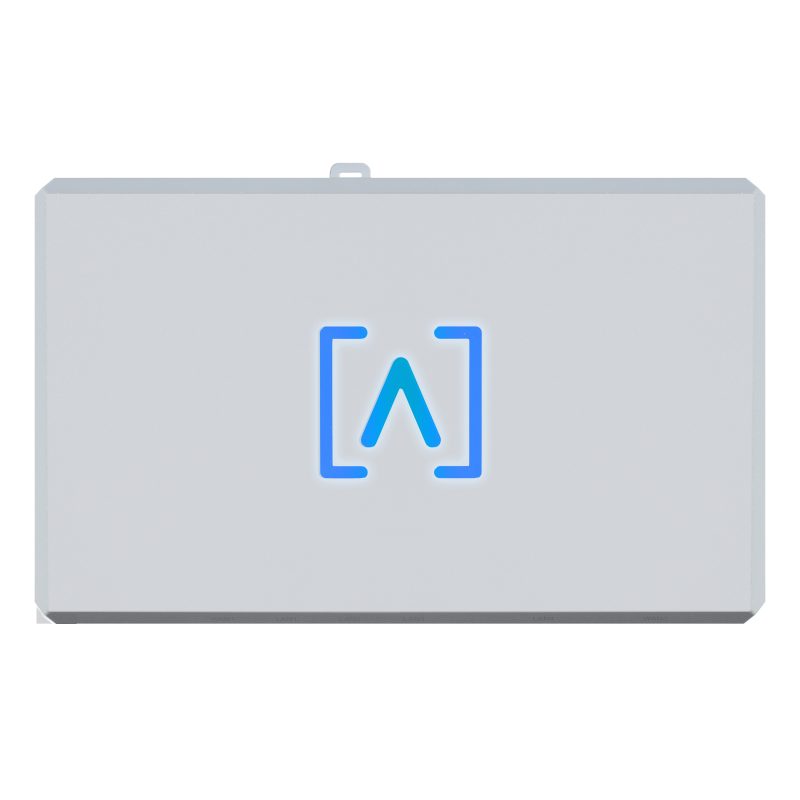

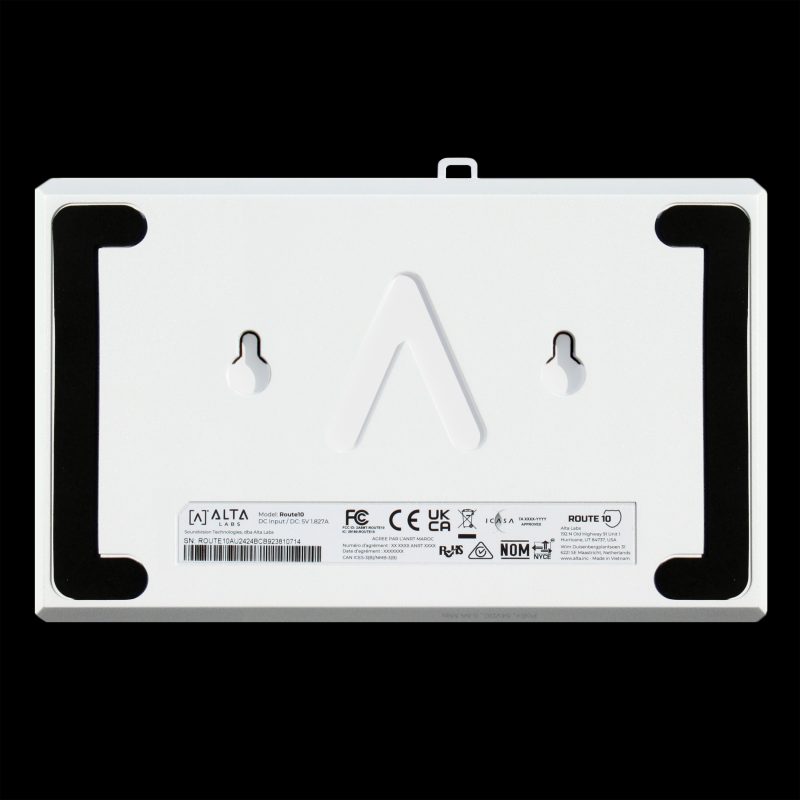

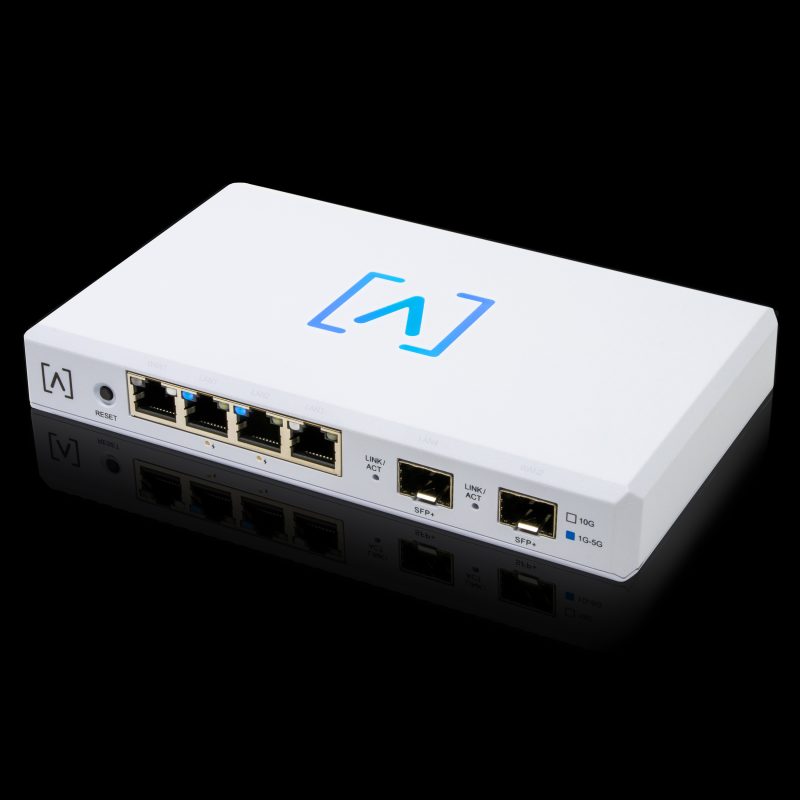

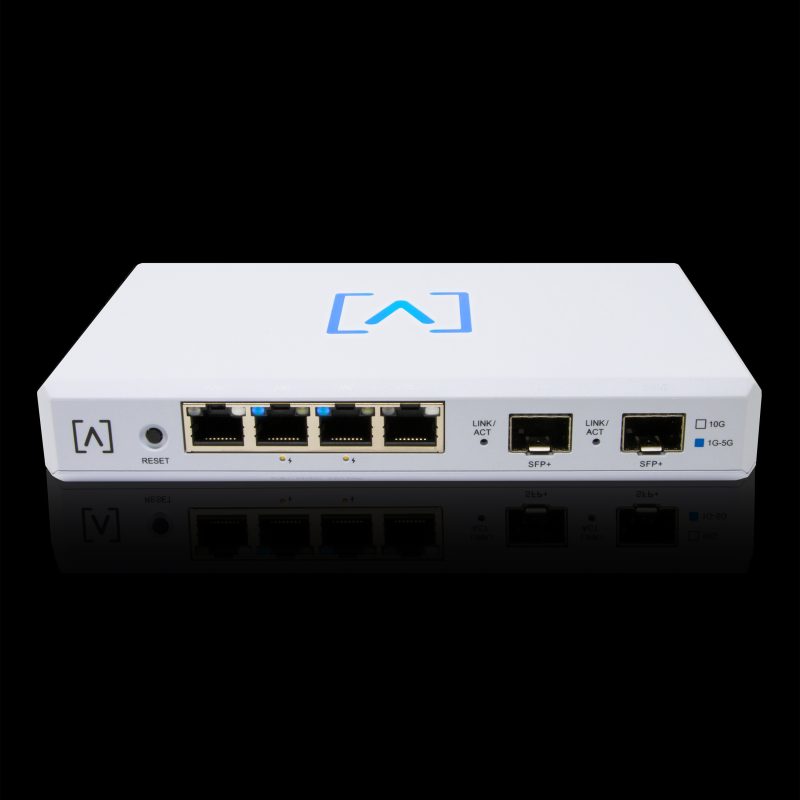

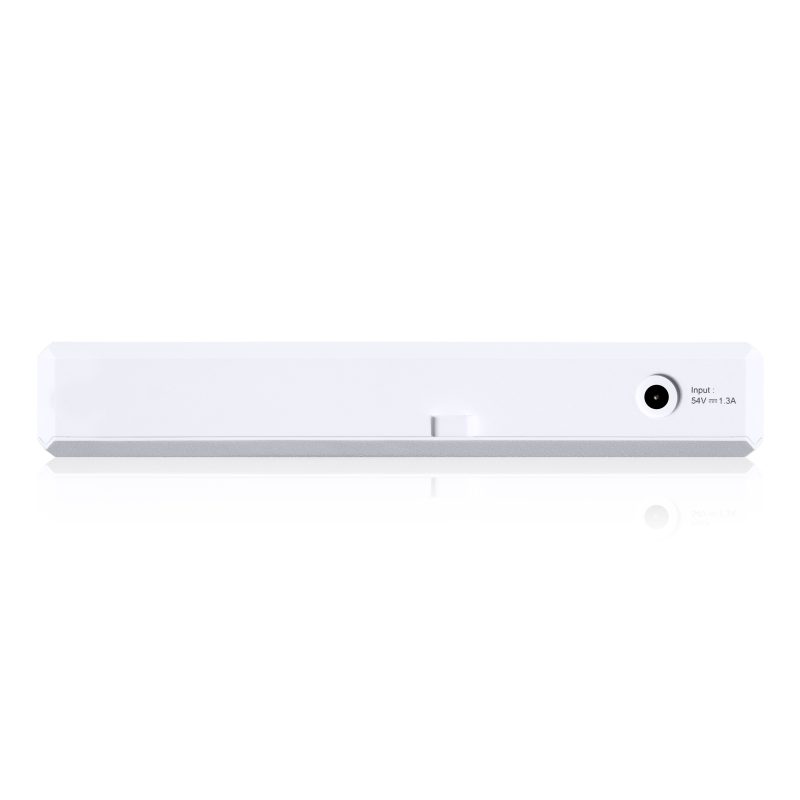

The Route10 is a high-performance 10 Gbps router with 4 2.5 Gbps RJ45 ports (2 PoE+) and 2 10G SFP+ ports. Its quad-core Qualcomm processor delivers exceptional performance with VPN, firewall, IDS/IPS, and advanced QoS.
Features Overview
4× 2.5 Gbps RJ45
2× 10 Gbps SFP+
PoE+ (2 ports, 40W)
Quad-Core Qualcomm
Bluetooth Setup
VPN WireGuard / IPsec
IDS/IPS at 10 Gbps
Multi-WAN / CAKE QoS
Built-in Firewall
Wall/Desktop Mount
High Performance Connectivity
4 autosensing RJ45 ports supporting up to 2.5 Gbps and 2 SFP+ ports supporting up to 10 Gbps for fiber and copper connections.
- Ports 1-4: 10/100/1000/2500 Mbps
- SFP+ Ports: 1/2.5/5/10 Gbps
- Total combined throughput: 25 Gbps
Native VPN Support
Access your home network from anywhere in the world. Stream your subscriptions as if you were at home.
Supported protocols: WireGuard, IPsec site-to-site, IKEv2 remote access, L2TP+IPsec, OpenVPN.
AVoIP Ready
The Route10 is ready for AVoIP applications with 10 Gbps throughput and full support for digital signage and audio-video distribution.
Cloud Management & Complete Ecosystem
Manage your router via the Alta Labs cloud interface with the mobile app. Route10 integrates seamlessly with Alta Labs access points, switches, and controllers.
- iOS and Android mobile app
- Multi-WAN with failover and load-balancing
- CAKE QoS for ultra-low latency
- Built-in firewall with NAT
Specifications
| RJ45 Ports | 4× autosensing 10/100/1000/2500 Mbps |
| SFP+ Ports | 2× 10 Gbps SFP+ |
| PoE+ Ports | 2× 802.3at PoE+ (ports 2-3) |
| PoE Budget | 40 Watts |
| Processor | Quad-core Qualcomm 2.2 GHz |
| Total Throughput | 25 Gbps combined upload/download |
| Dimensions | 180 × 110 × 29.8 mm |
| Weight | 0.46 kg (1.01 lbs) |
| Max Power | 70W |

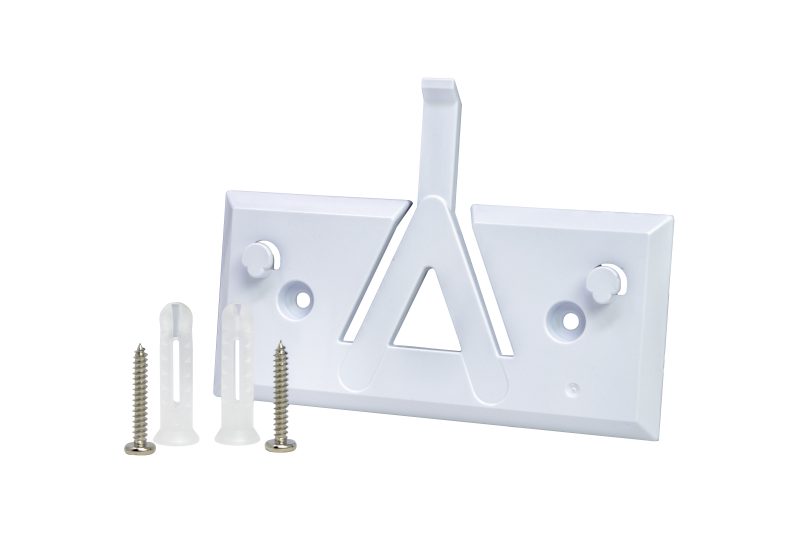

| Mounting | Wall, desktop |
| Temperature | -5 to 50°C |
| Certifications | CE, FCC, IC |
