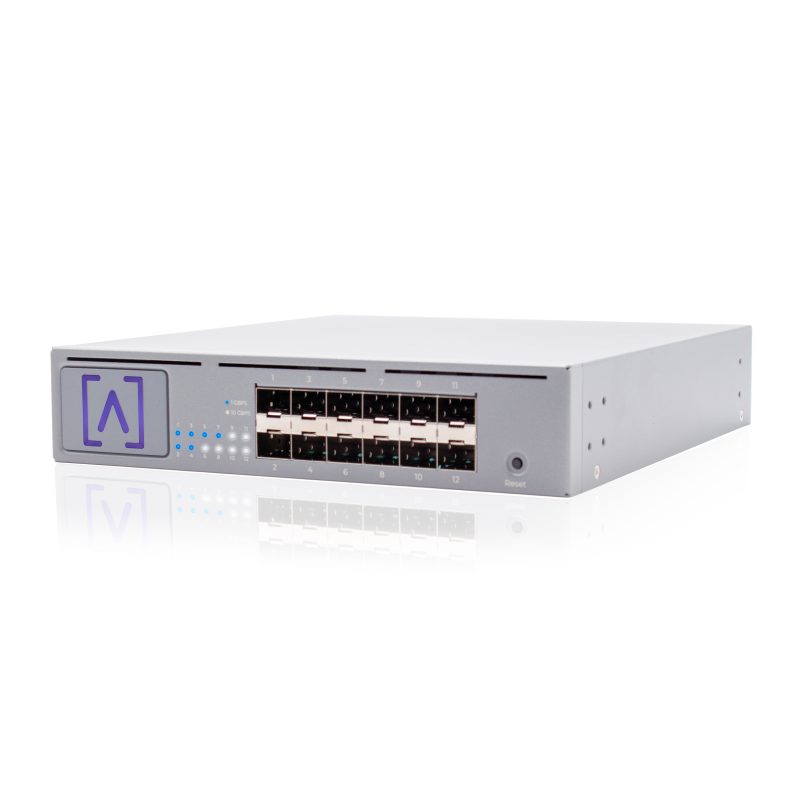

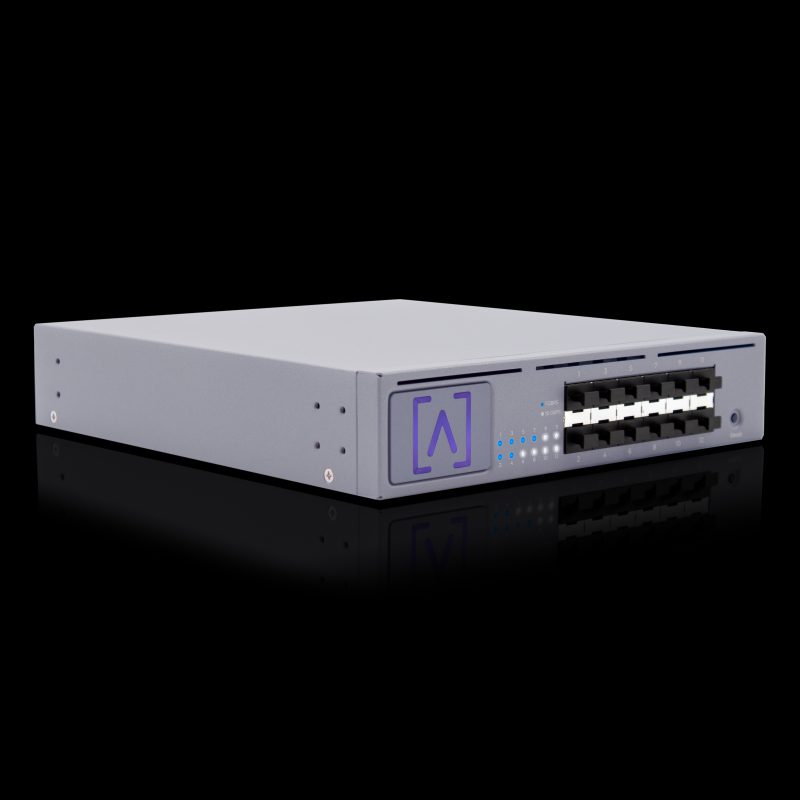

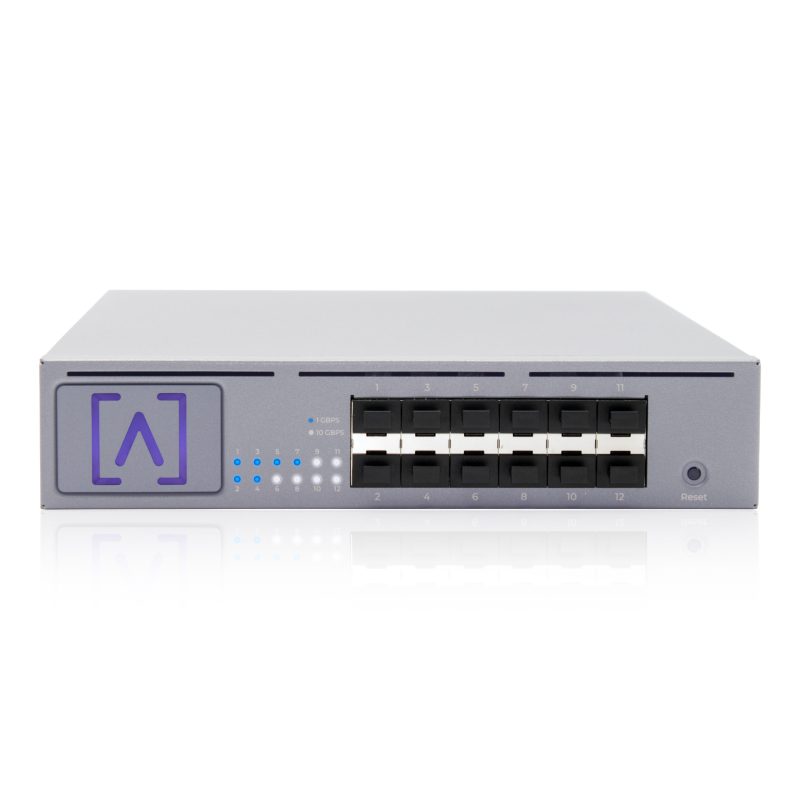

The S12 is a 12-port SFP+ distribution switch offering high-capacity fiber or copper connections up to 10 Gbps per port. Ideal for backbone architectures and high-speed site-to-site VPNs.
Features Overview
12× SFP+ PortsUp to 10 Gbps Per Port
Scalable Cloud Management
Bluetooth Setup
Rack/Wall Mount
VLAN Stacking
Egress/Ingress Rate Limiting
802.1X Authentication
High Performance Connectivity
12 SFP+ ports for high-capacity fiber or copper connections at 1, 2.5, 5, or 10 Gbps. Ideal for network backbone architectures.
Mounting Versatility

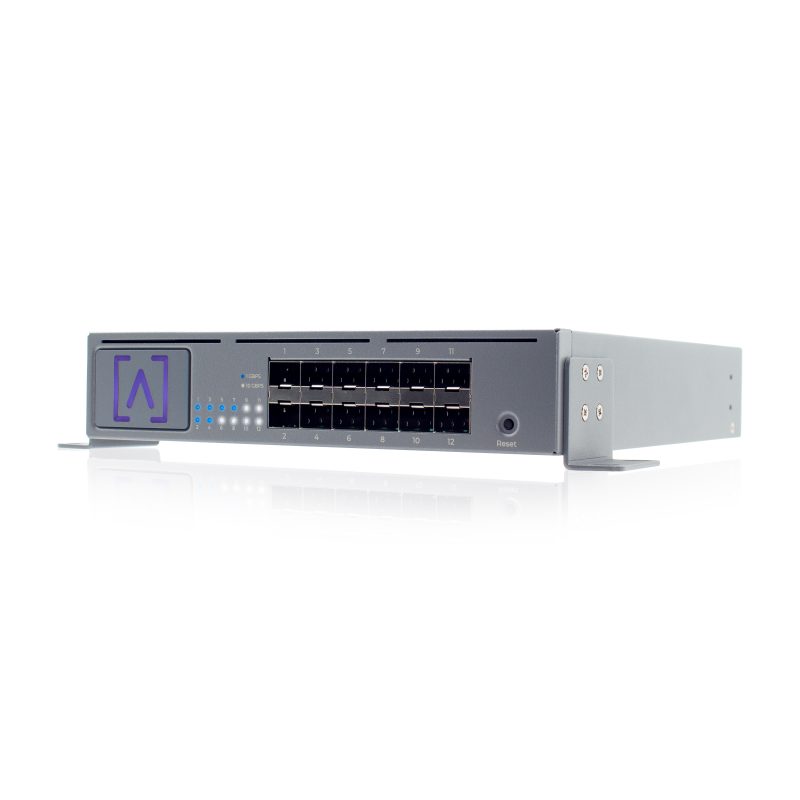

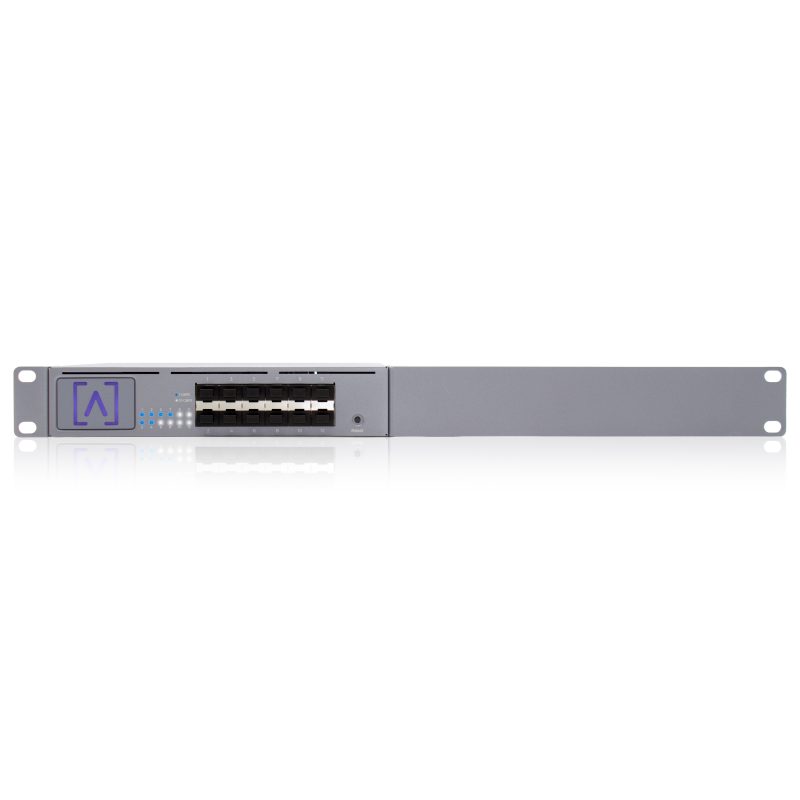

Mount the S12 in a 1U rack space or on a wall with included hardware. Small rack ears can be positioned up or down for wall mounting.
Bluetooth Setup
Simplified setup via Bluetooth using the Alta Networks mobile app.
Scalable Cloud-Based Management
Intuitive cloud management interface included with your Alta Labs hardware purchase.
- Worldwide high-availability architecture
- Instant multi-site management
Specifications
| SFP+ Ports | 12× SFP+ (1/2.5/5/10 Gbps) |
| Switching Capacity | 240 Gbps |
| Mounting | 1U rack, wall |
| Dimensions | 440 × 200 × 44 mm |
| Weight | 2.3 kg |
| Certifications | CE, FCC, IC |
