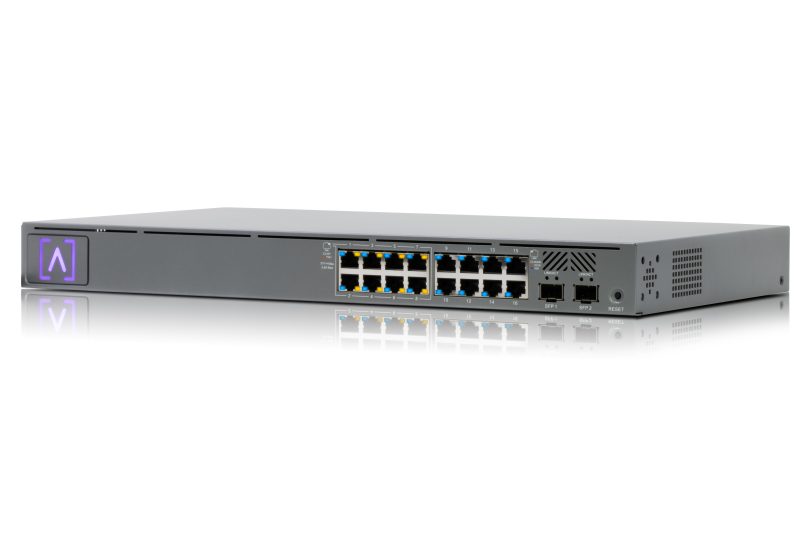

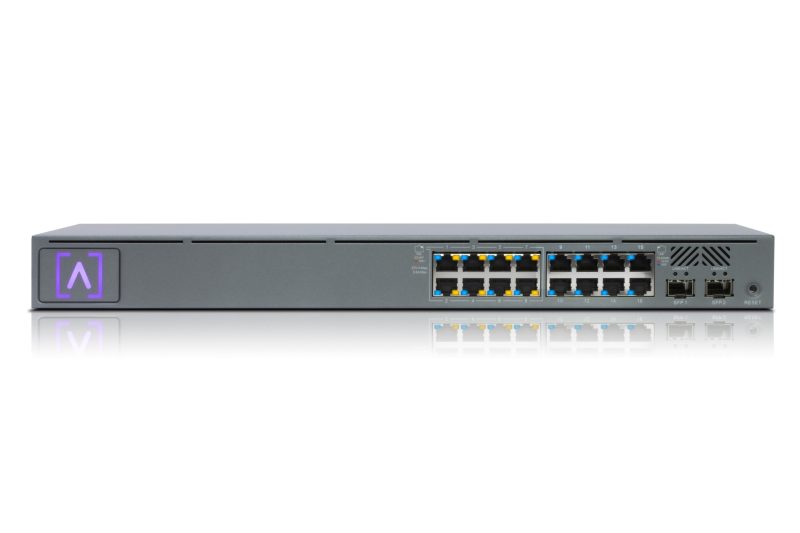

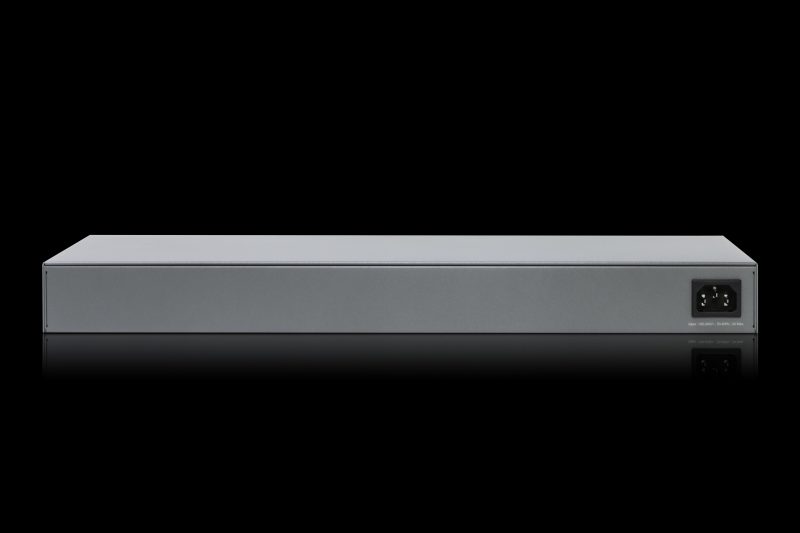

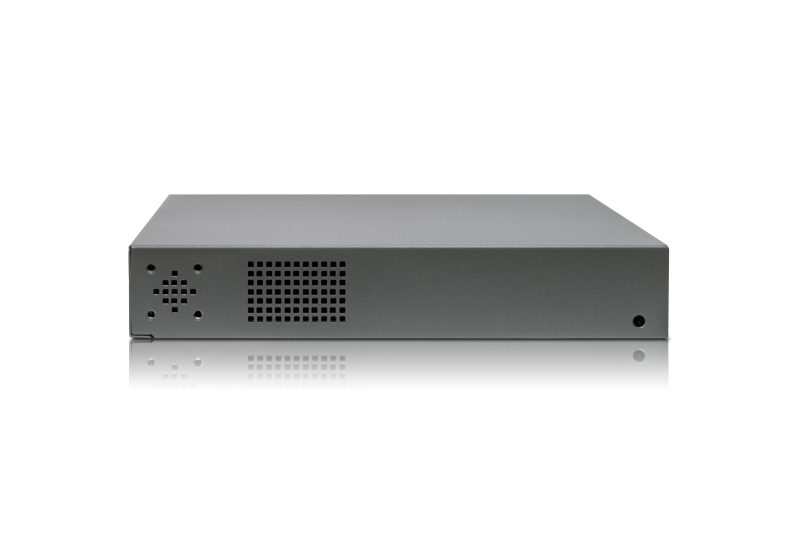

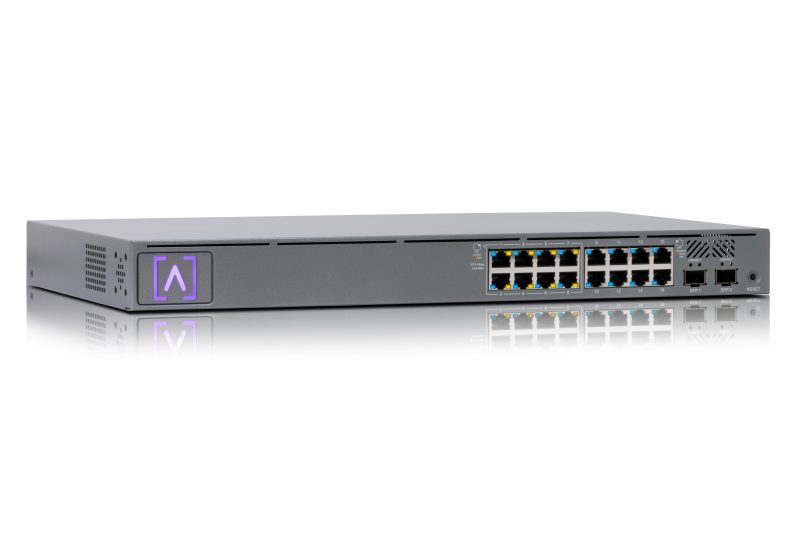

The S16-POE is a rack-mountable managed Ethernet switch with 16 Gigabit ports, 8 PoE+ ports, and 2 SFP uplink ports. Designed for medium-sized professional networks.
Features Overview
PoE+ (8 ports, 120W)
2 SFP Uplink Ports
Bluetooth Setup
Mobile App
Egress/Ingress Rate Limiting
IGMP Snooping
802.1X Authentication
Scalable Cloud Management
Power over Ethernet
The S16-POE offers 8 PoE+ ports with a 120 Watt budget. Each port provides up to 30W for your 802.3at/af devices.
PoE+ Standard — 802.3at, backwards compatible with 802.3af. Budget: 120W.
Bluetooth Setup
Simplified adoption and configuration via Bluetooth with the Alta Networks mobile app.
Scalable Cloud-Based Management
Intuitive, scalable cloud management interface for all your Alta Labs devices.
- Multi-site management with worldwide CDN
- High-availability redundant infrastructure
- Backup and restore
Egress and Ingress Rate Limiting
Limit inbound and outbound traffic per connection for granular bandwidth control.
Specifications
| RJ45 Ports | 16× 10/100/1000 Mbps |
| PoE+ Ports | 8× 802.3at PoE+ (ports 1-8) |
| SFP Ports | 2× SFP (up to 1 Gbps) |
| PoE Budget | 120 Watts |
| Per-Port PoE | Up to 30W |
| Switching Capacity | 36 Gbps |
| Non-blocking Throughput | 18 Gbps |
| MAC Table | 16K entries |
| Mounting | 1U rack, wall |
| Dimensions | 44 × 200 × 280 mm |
| Weight | 1.6 kg |
| Max Power | 135W (full PoE) |
| Certifications | CE, FCC, IC |
