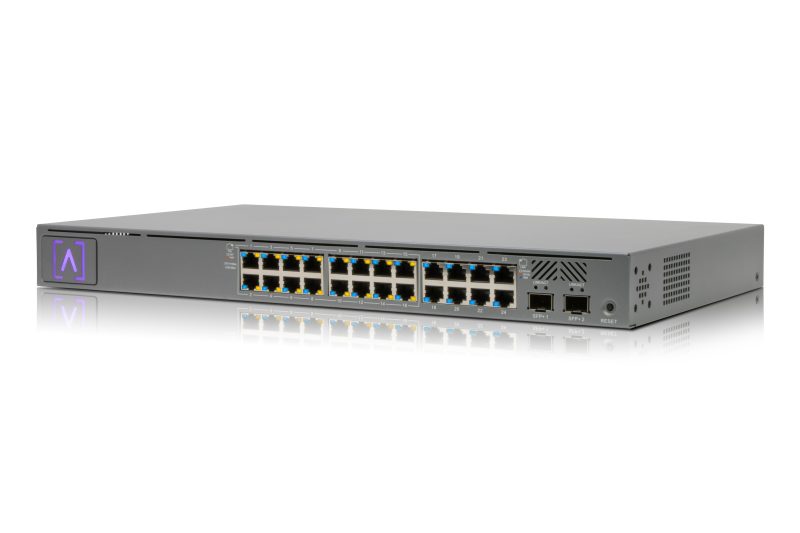

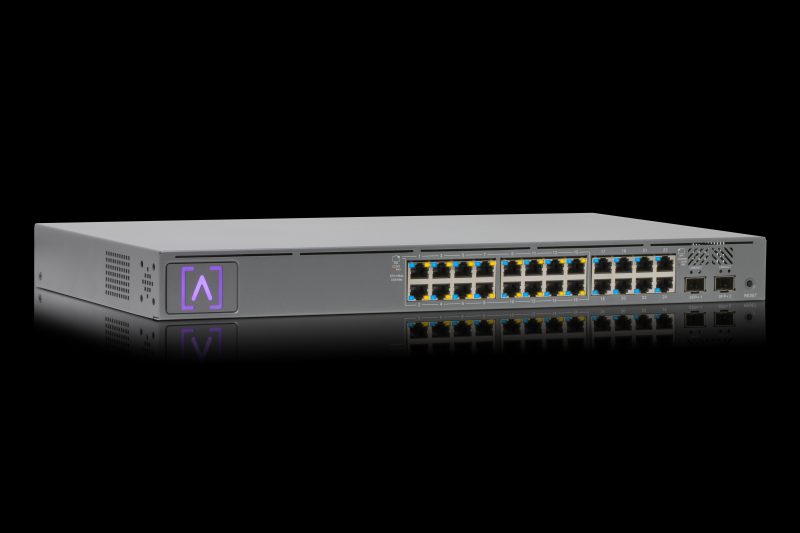

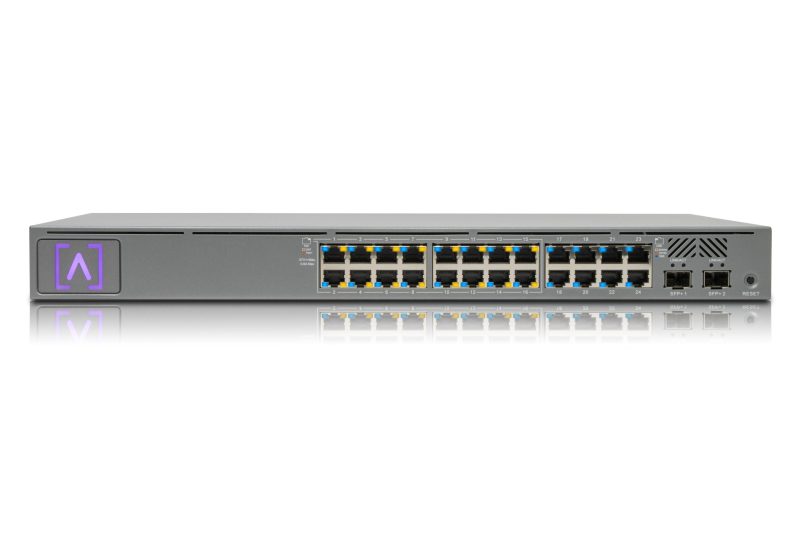

The S24-POE is a rack-mountable managed Ethernet switch with 24 Gigabit ports, 16 PoE+ ports, and 2 SFP+ 10G uplink ports. Designed for demanding professional networks requiring high-speed fiber connectivity.
Features Overview
PoE+ (16 ports, 240W)
2× SFP+ 10 Gbps
Bluetooth Setup
Scalable Cloud Management
Egress/Ingress Rate Limiting
IGMP Snooping
802.1X Authentication
Included Rack Mount
VLAN Stacking
Power over Ethernet
The S24-POE offers 16 PoE+ ports with a 240 Watt budget. Each port provides up to 30W for 802.3at/af devices.
240W PoE budget — Power up to 16 PoE devices simultaneously.
SFP+ High Performance Connectivity
2 SFP+ ports supporting fiber or copper connections at 1, 2.5, 5, or 10 Gbps for high-capacity uplinks.
Scalable Cloud-Based Management
Intuitive cloud management interface for all Alta Labs devices. High-availability architecture with worldwide CDN.
- Instant multi-site management
- Redundant geo-optimized infrastructure

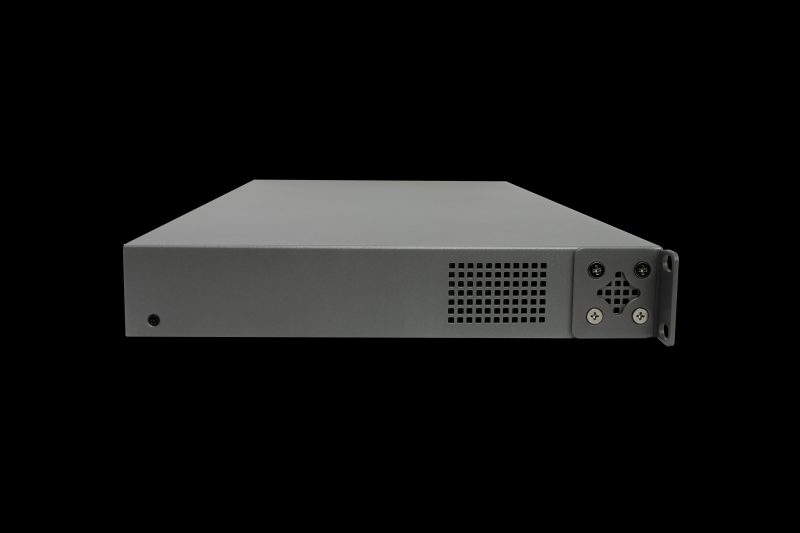

Toolless Rack Mount
Included rack studs allow quick and secure installation without tools. Rack ears can also be positioned for wall mounting.
Specifications
| RJ45 Ports | 24× 10/100/1000 Mbps |
| PoE+ Ports | 16× 802.3at PoE+ (ports 1-16) |
| SFP+ Ports | 2× SFP+ (1/2.5/5/10 Gbps) |
| PoE Budget | 240 Watts |
| Switching Capacity | 88 Gbps |
| Non-blocking Throughput | 44 Gbps |
| MAC Table | 16K entries |
| Mounting | 1U rack, wall |
| Dimensions | 44 × 254 × 441.5 mm |
| Weight | 3.6 kg (7.9 lbs) |
| Max Power | 295W (full PoE) |
| Certifications | CE, FCC, IC |
